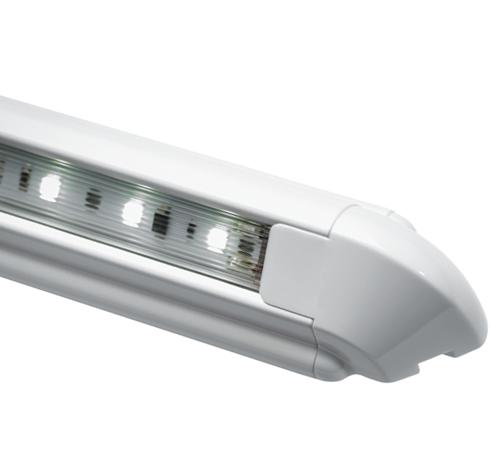

Astro 24V 12 LED ( 343mm ) LL2CW250/2

The Astro 24V 12 LED delivers excellent performance and energy efficiency using advanced Orizon LED strip technology. Its 12 high-intensity Cree LEDs offer superior luminosity while maintaining low power draw, producing bright, even light that is suitable for a wide range of vehicle and workspace applications.

At 343mm, this compact model is approximately twice the size of a standard awning light, delivering a broader wash of angled light along the side of a vehicle or across a working surface. This makes it ideal for awnings, storage lockers, shelving, and vehicle exteriors where reliable illumination is essential.

Installation is simple thanks to the slim aluminium housing with ABS snap-on end caps, which conceal the fixings for a clean and professional finish. The LED strip and PCB driver are fully encased within a polycarbonate extrusion, giving the unit an IP66 waterproof rating and ensuring long-term durability in outdoor environments.

Certified to ECE R10 (E11 10R-057639), this model meets the required electromagnetic compatibility standards for vehicle installations. Part of the versatile Astro range, it is available in 12, 24, and 48 LED options, providing flexible lighting performance to suit every budget and requirement. PIR sensor versions are also available.

Key Features

• 12 long-life Cree LEDs for bright, efficient illumination
• Uses Orizon LED strip technology for superior performance and low power draw
• 343mm compact design with wide, angled light coverage
• Quick installation with slim aluminium housing and concealed fixings
• ABS snap-on end caps for a clean, robust finish
• IP66 waterproof for demanding outdoor environments
• ECE R10 certified (Certificate E11 10R-057639)
• Compatible with PIR sensor/switch options
• Available in 12, 24, and 48 LED variants
• Ideal for awnings, shelving, lockers, work areas, and vehicle exteriors

Specifications

• Product Name: Astro 24V 12 LED: 343mm
• Model Number: LL2CW250/2
• Voltage: 24V
• Number of LEDs: 12 Cree LEDs
• Light Output: Up to 1280 lumens (range dependent)
• Beam Pattern: Wide, angled illumination
• Length: 343 mm
• Housing Material: Slim aluminium body with ABS end caps
• Waterproof Rating: IP66
• Technology: Orizon LED strip
• Approval: ECE R10: E11 10R-057639
• Installation: Quick-fit concealed fixings
• Applications: Awnings, workspaces, lockers, shelving, vehicle exteriors
• Sensor Compatibility: Optional 5-minute PIR sensor/switch
