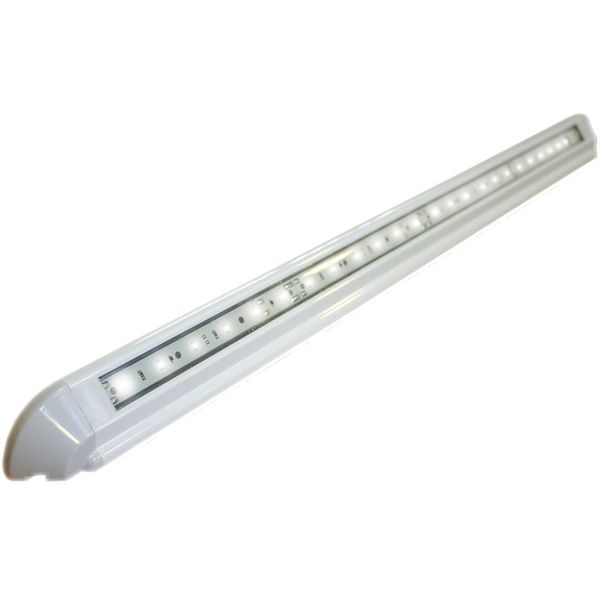

Astro 12V 24 LED - 593mm LL2CW500

The Astro 12V 24 LED from Labcraft offers powerful, energy-efficient illumination for leisure vehicles, commercial vans, workshops, and outdoor environments. Incorporating advanced Orizon LED strip technology, the unit uses Cree high-intensity LEDs to achieve superior luminosity with lower power consumption, delivering an impressive 640 lumens and over 190 lux at 1 metre.

At 593mm, this Astro model is approximately twice the length of a standard awning light, producing a significantly wider and more even distribution of light along the side of a vehicle. The angled illumination pattern is ideal for awnings, work areas, shelving, lockers, and external tasks where dependable lighting is essential.

Installation is quick and straightforward, thanks to the slim aluminium housing with snap-on ABS end caps, which conceal the fixings for a clean, professional finish. The LEDs and PCB driver are fully encased within a polycarbonate extrusion, giving the unit an IP66 waterproof rating for reliable performance in harsh weather conditions.

Built with durability in mind, the Astro series is E-type approved, features a robust operating temperature range of 30°C to +40°C, and is backed by a 10-year warranty. Manufactured in the United Kingdom, it delivers exceptional quality and long service life across all applications.

Key Features

• 640-lumen output with over 190 lux at 1 metre
• 24 Cree high-intensity LEDs using Orizon LED strip technology
• 593mm extended length for a wide, even spread of light
• Slim aluminium housing with snap-on ABS end caps for quick installation
• IP66 waterproof for reliable outdoor use
• Angled beam ideal for awnings, workspaces, lockers, and shelving
• Low power consumption with only 0.22A at 28V
• Cool white light for high visibility
• E-type approved for vehicle use
• Operating temperature range 30°C to +40°C
• 10-year warranty for long-term confidence
• Manufactured in the United Kingdom

Specifications

• Product Name: Astro 12V 24 LED: 593mm
• Model Number: LL2CW500 / LL2CW500/2
• Voltage: 20V to 28V DC (12V system compatible)
• Light Output: 640 lumens
• Lux (1 metre): 190+ lux
• Number of LEDs: 24
• LED Type: Cree LEDs
• Length: 593 mm
• Height: 43 mm
• Housing Material: Aluminium body with ABS end caps
• Technology: Orizon LED strip
• Beam Pattern: Wide, angled illumination
• Waterproof Rating: IP66
• Current Draw: 0.22A at 28V
• Power Consumption: 6W LED power
• Light Colour: Cool White
• Approval: E-type approved
• Operating Temperature:: 30°C to +40°C
• Switch: No (non-switched model)
• Country of Origin: United Kingdom
• Warranty: 10 years
