Description
This 350A Anderson Plug from the SB® 50 series is designed to provide a secure and efficient DC power connection. Its genderless design allows for easy and safe connections, while the mechanically keyed housings prevent accidental cross-connections by color-coding the voltage range. The sacrificial terminal tip helps reduce damage caused by arcs during 'hot' disconnects, ensuring a longer product life. The flat wiping action of the plug provides a self-cleaning mechanism for the terminal contacts, improving long-term performance and reducing maintenance. With polarity markings molded directly into the body, installation is simplified and secure.
Key Features
- Genderless Design: Simplifies the connection process for easy installation.
- High Terminal Contact Force: Ensures secure and reliable electrical connections.
- Mechanically Keyed Housing: Color-coded to prevent cross-connections between different voltage systems.
- Sacrificial Terminal Tip: Contains arc damage during 'hot' disconnects, prolonging the terminal's lifespan.
- Flat Wiping Action: Self-cleans terminal contact surfaces with each connection for optimal performance.
- Polarity Markings: Molded into the connector body for safe and easy installation.
Specifications

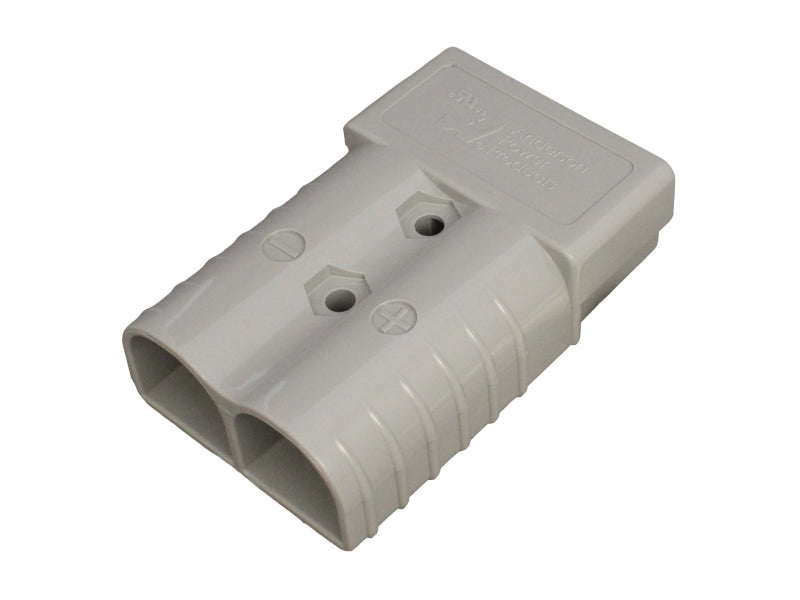

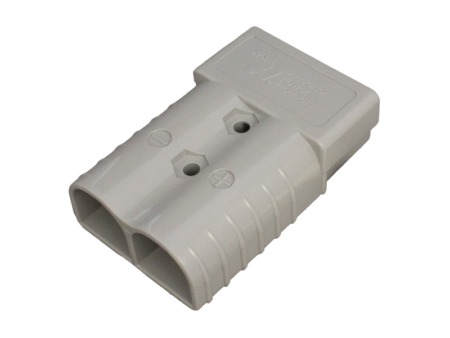

- Product Name: Anderson Plug 350A Grey
- Series: SB® 50
- Connector Type: DC Supply Connector
- Poles: 2
- Terminals: Without Contacts
- Gender: Hermaphrodite
- Current Rating: 350A
- Voltage Rating: 600V
- Colour: Grey
- Mechanical Mounting: Cable Mount
- Electrical Mounting: Crimped
