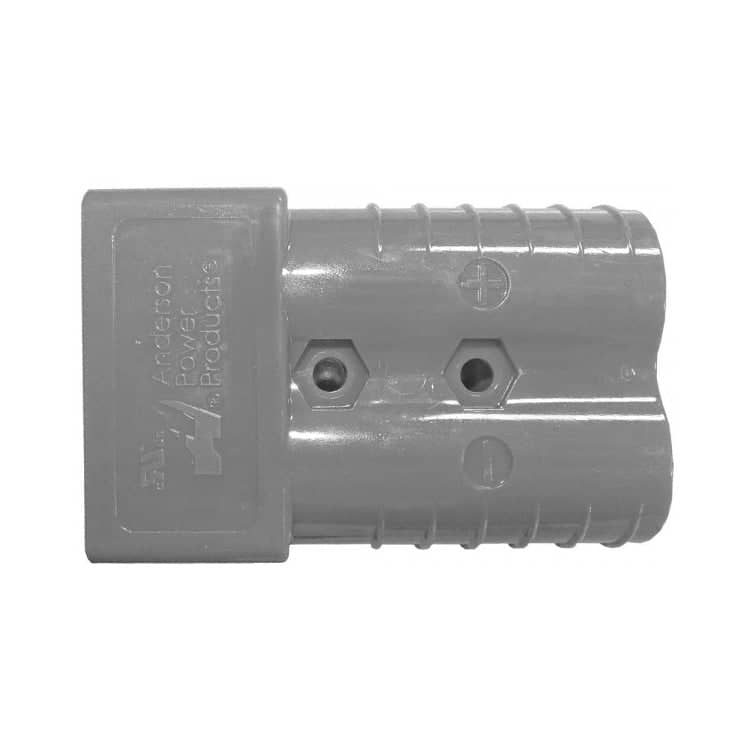

Anderson Plug 175a Grey - 6325G1

This Anderson Plug 175A from the SB® 50 series is a robust and versatile connector designed for various DC power supply applications. Its gender-neutral design allows for easy connections, while the sacrificial terminal tip reduces damage during 'hot' disconnects by containing arc-related wear. The flat wiping action ensures that the terminals are kept clean with every connection and disconnection, improving longevity and performance. Designed with mechanically keyed housings colour-coded by application, this plug minimises the risk of cross-connections, enhancing safety. The polarity markings on the body simplify the installation process. This connector is perfect for high-power connections and applications like battery or welding cables.

Key Features

• Genderless Design: Allows easy and safe connections with low connection force.
• Sacrificial Terminal Tip: Protects against damage caused by 'hot' disconnects.
• Flat Wiping Action: Keeps terminal faces clean for optimal performance.
• Mechanically Keyed Housing: Colour-coded to prevent cross-connections.
• Polarity Markings: Moulded into the body for easier installation.
• High Amperage: Rated for 175A to support heavy-duty applications.
• Durable Construction: Made to withstand tough conditions and ensure long-term reliability.

Specifications

• Product Name: Anderson Plug 175A Grey
• Series: SB® 50
• Connector Type: Anderson Connector
• Poles: 2
• Terminals: 2
• Gender: Neutral
• Amperage: 175A
• Voltage Rating: 600V
• Colour: Grey
• Cable Compatibility: Up to 60mm²
• Dimensions: 26 x 55 x 80 mm
