Description

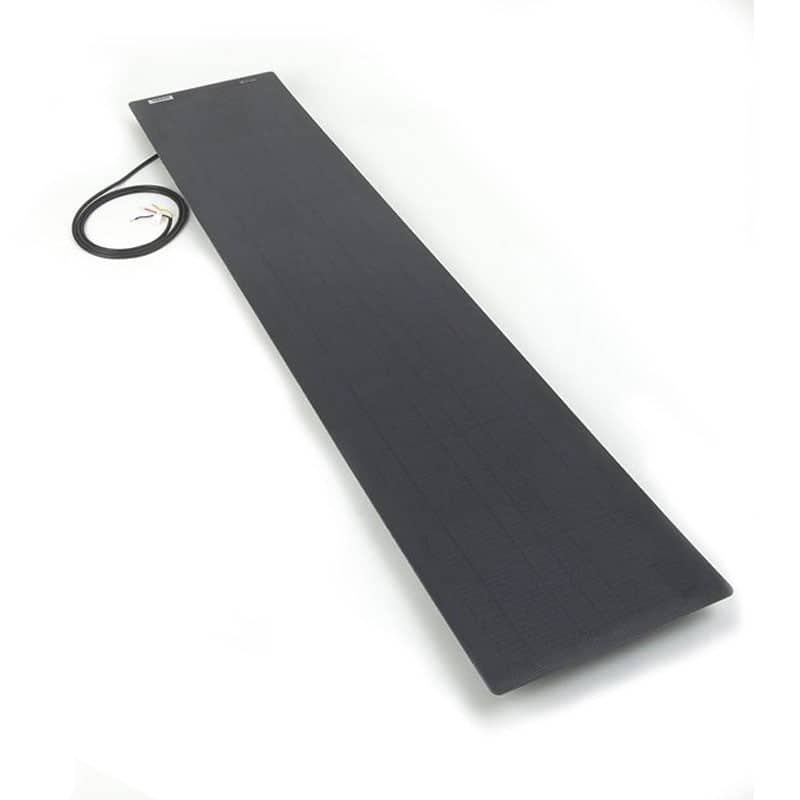

The 60W Flexi Solar Panel – Black Rear Exit is a semi-flexible, lightweight, and waterproof solar panel designed for marine, RV, and off-grid applications. Its ETFE top layer ensures abrasion resistance, self-healing, and UV protection, making it ideal for harsh environments. The rear-exit cable design allows a flush-mounted installation, keeping the panel discreet and secure.
Key Features
- Self-Healing Surface: ETFE coating with memory effect repairs minor abrasions.
- Complete Waterproofing: Six-layer heavy-duty laminate, IP69-rated.
- Hot Spot Protection: Built-in shading diodes prevent overheating.
- Superior Design: Rounded corners and secure cable connection reduce snagging.
- Underside Cable Exit: For flush installation on roofs or decks.
- Easy Installation: Use Simson ISR 70-03 adhesive for bonding to flat or slightly curved surfaces.
Specifications
- Power Output (Pmax): 60W
- Size (L x W x H): 1450 x 315 x 4mm
- Weight: 3 kg
- Watts/Day (Avg.): 360W
- Amp Hours/Day (Avg.): 20.22Ah
- Nominal Voltage (Vmp): 17.8V
- Nominal Current (Imp): 3.37A
- Open Circuit Voltage (Voc): 22.1V
- Short Circuit Current (Isc): 3.64A
- Ingress Protection (IP): IP69
- Charge Controller Required: 10Ah
