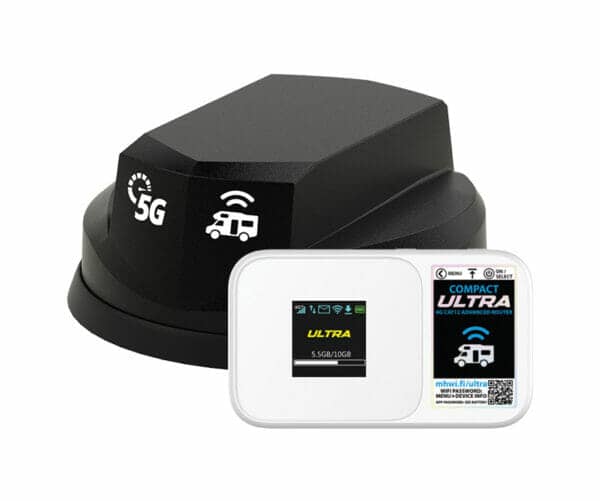

5G Ready Compact Ultra - Black T5GRCUB+

The 5G Ready Compact Ultra combines Motorhome WiFi’s future-proof 5G-ready antenna with the powerful 4G Compact Ultra router, delivering fast and stable internet connectivity wherever you travel.

The advanced 5G-ready roof antenna is engineered with patented technology for exceptional reception, even in remote areas, and is ground plane independent: yet can still benefit from one when available. Built for real-world touring, it’s rated IP69K and IK10, making it resistant to high-pressure washing and physical impacts up to 5 kg from 40 cm.

Standing just 75 mm high, this aerodynamic antenna sits lower than most skylights. It uses a self-sealing 3M adhesive foam pad and adjustable threaded internal brace for a completely weatherproof installation, no additional sealant or Sikaflex required.

The included 4G Compact Ultra router offers fast CAT 12 LTE+ speeds (up to 600 Mbps), supporting 32 wireless devices and featuring a 1.44" LCD on-screen display. It can be managed easily via the Motorhome WiFi smartphone app, providing full control of your network, data usage, and device settings.

Key Features

• Future-proof 5G-ready antenna compatible with 2G, 3G, 4G, and 4G+ networks
• CAT 12 LTE+ router with download speeds up to 600 Mbps
• Quick Mount Docking Station for simple, clean installation
• Connect up to 32 wireless devices simultaneously
• WiFi range: 25 to 50 m (vehicle and nearby areas)
• 1.44” LCD colour display for quick status monitoring
• Easy smartphone app control (for setup, data, and security management)
• Ground plane independent design (works on metal or non-metal roofs)
• Ultra-durable: IP69K and IK10 rated for weather and impact resistance
• Compact and low-profile: just 75 mm high
• No extra sealant required: self-sealing 3M pad for leak-free fit
• Compatible with ribbed and flat roofs (optional fitting kits available)

Specifications

• Product Code: T5GRCUB+
• Network Compatibility: 2G / 3G / 4G / 4G+ / 5G-ready
• Router Category: LTE CAT 12 (600 Mbps download)
• Antenna Gain (no ground plane): 698-960 MHz: 3 dBi / 1710-2700 MHz: 6 dBi / 2700-3800 MHz: 7 dBi / 4900-6000 MHz: 8 dBi
• Antenna Gain (with ground plane): 698-960 MHz: 6 dBi / 1710-2700 MHz: 8.5 dBi / 2700-3800 MHz: 9.5 dBi / 4900-6000 MHz: 10 dBi
• Ingress Rating: IP69K
• Impact Rating: IK10
• Ground Plane Independent: Yes
• Cable Length: 80 cm
• WiFi Range: 25 to 50 m
• Connected Devices: Up to 32 wireless
• Colour: Black
• Antenna Dimensions (H × Ø): 75 mm × 180 mm
• Weight: 500 g
• Mounting Type: Adhesive pad with threaded internal brace
• Additional Info: Optional ribbed/smooth roof fitting kits available
