Description

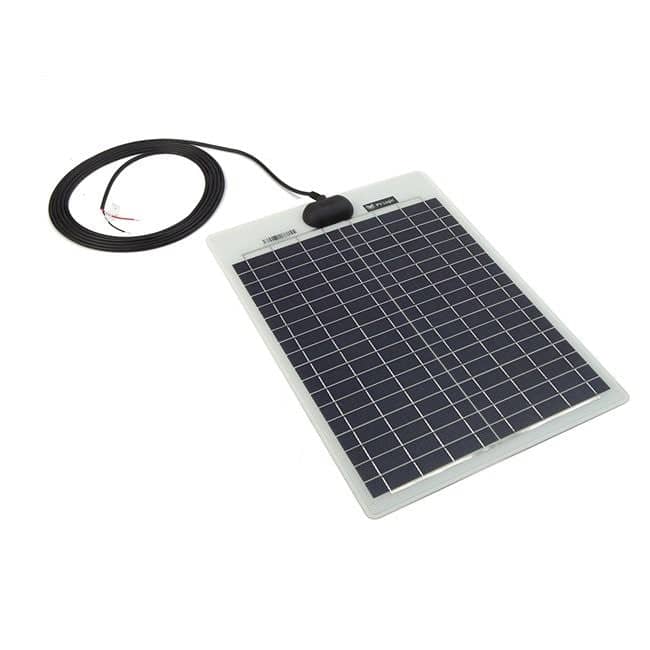

The 20W PV Logic Flexi Solar Panel offers a lightweight, durable, and efficient solution for small off-grid power applications. It is perfect for flat or slightly curved surfaces like boats, motorhomes, caravans, or remote structures, delivering up to 130Wh per day. Its advanced features, such as the self-healing ETFE top layer, provide added resilience to abrasions and harsh environmental conditions, making it ideal for outdoor use.
The semi-flexible panel has a unique ETFE coating with self-healing properties, which can repair minor abrasions caused by contact with branches or debris, ensuring longer lifespan and consistent performance. The panel is designed to be waterproof and corrosion-resistant, with a robust six-layer laminate and waterproof junction box that prevents water ingress, even under extreme weather conditions.
This solar panel is a great choice for applications that require low power, such as lighting, charging mobile devices, and operating electric gates, with 120Wh/day and 6.84Ah/day output. For users installing on boats or vehicles, the panel is easy to install using adhesives like Simson ISR 70-03, providing a secure fit without any sharp edges.
Key Features
- High Efficiency Crystalline Cells: Designed for all-weather charging with up to 130Wh per day output.
- Self-Healing ETFE Top Layer: Durable and resilient to abrasions, with the ability to self-repair in the event of minor damage.
- Waterproof Construction: Completely waterproof with a six-layer laminate that protects the panel in extreme conditions.
- Robust UV Light and Salt Spray Tested: Perfect for outdoor and marine environments.
- Efficient Low-Voltage Output: 120Wh/day and 6.84Ah/day from a 20W panel.
- No Sharp Edges: Rounded corners and a unique curved junction box for superior adhesion and safety.
- Easy Installation: Can be bonded to flat or slightly curved surfaces such as painted metal, GRP, and fiberglass using Simson ISR 70-03 adhesive.
Specifications
- Panel Size: 475 x 345 x 4mm
- Weight: 0.79kg
- Power Output (Per Day): 120Wh
- Amp Hours per Day: 6.84Ah
- Nominal Voltage (Vmp): 17.6V
- Nominal Current (Imp): 1.14A
- Open Circuit Voltage (Voc): 21.9V
- Short Circuit Current (Isc): 1.23A
- Ingress Protection Rating: IP69
- Charge Controller: 10Ah
- Operating Temperature: -35°C to +85°C
- Warranty: 2 Years
