Description

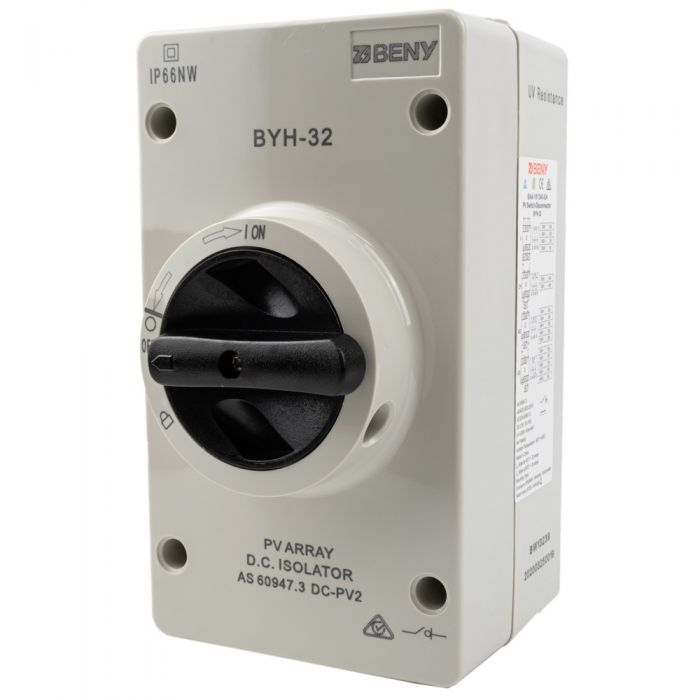

Solar PV DC-isolator that is compliant with IEC60947-3 and AS 60947:3:2018. The switch is encapsulated in the IP66 enclosure and provides safe isolation for voltages up to 1000V at 32A. Suitable for commercial and residential photovoltaic systems.
DC PV Isolator Switch. Solar Residential And Commercial PV Rooftop Systems
The PV Isolator is a configurable DC isolator for a photovoltaic system with PV string voltage from 300V to 1000V. The switch is a piece of essential equipment for any PV installation and should be connected between the solar panels and inverter.
FEATURES
- IP66 water proof with UV resistance
- Arcing time < 3ms
- Earth connection
- IEC60947-3, AS60947.3 compliant
- 2 poles, 4 poles available for single and double string
- 32Amps up to 1000V configurable
- 5 year warranty
Important Recommendation: A dc isolator should be able to stand the 1.15x the string open-circuit voltage (Voc) and 1.25x the string short circuit current (Isc)
CONFIGURATION TABLE
